TRAVELERS, THERE IS NO PATH, PATHS ARE MADE BY WALKING.
(Antonio Machado, 1875 – 1939)

all

360° photography

We take photos during site inspections with our Insta360 ONE X2 360-degree panorama camera.

Why do we do this? We want to have an all-round view of our projects. To see the scenery from different viewpoints helps us in understanding what we are looking at. And facilitates the exchange between designers and the construction site. The shooting locations are automatically localised on the floor plan.


Further information

Aerial photography

We fly over construction sites with our DJI Mini 2 drone with 4K camera, take photos and create photogrammetric georeferenced 3D images.

Why do we do this? We want to gain an overview of our projects. Having the overview helps us to design and plan. We overlay the photo with the plan, creating our georeferenced "photo plans". And that helps everyone involved in the project to work.


Watch YouTube video

Virtual reality

We walk in the immersive 3D footage of existing buildings with our Occulus Quest 2 VR goggles.

Why do we do this? Especially when planning the conversion of existing buildings, it is important to have a good understanding of the existing structure. During a real walk-through, you don't see everything at first glance. Virtually, we can walk around as often as we want. And we can simply plan better that way.


Further information

Augmented reality

We see, project and interact with 3D design with our Microsoft HoloLens 2 AR glasses.

Why do we do this? We visualise text, graphics, images or videos that we need during doing design work directly into our field of vision. We project our 3D design into the real world. The interaction of virtuality and reality in one field of vision helps us to understand, comprehend and decide faster.


Watch YouTube video

3D print

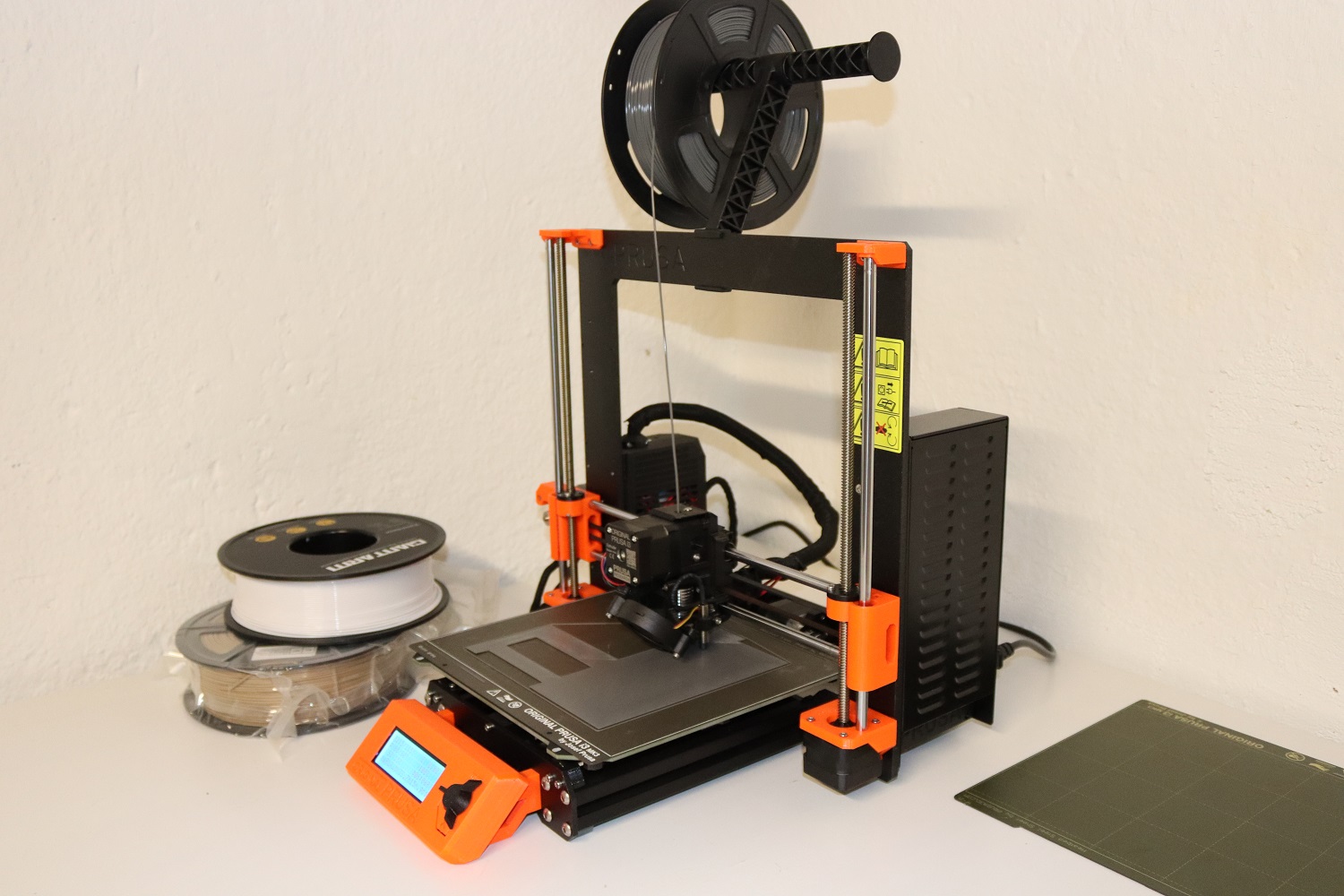

We 3D print scale models of our buildings and structures with our original Prusa i3 MK3S 3D printer.

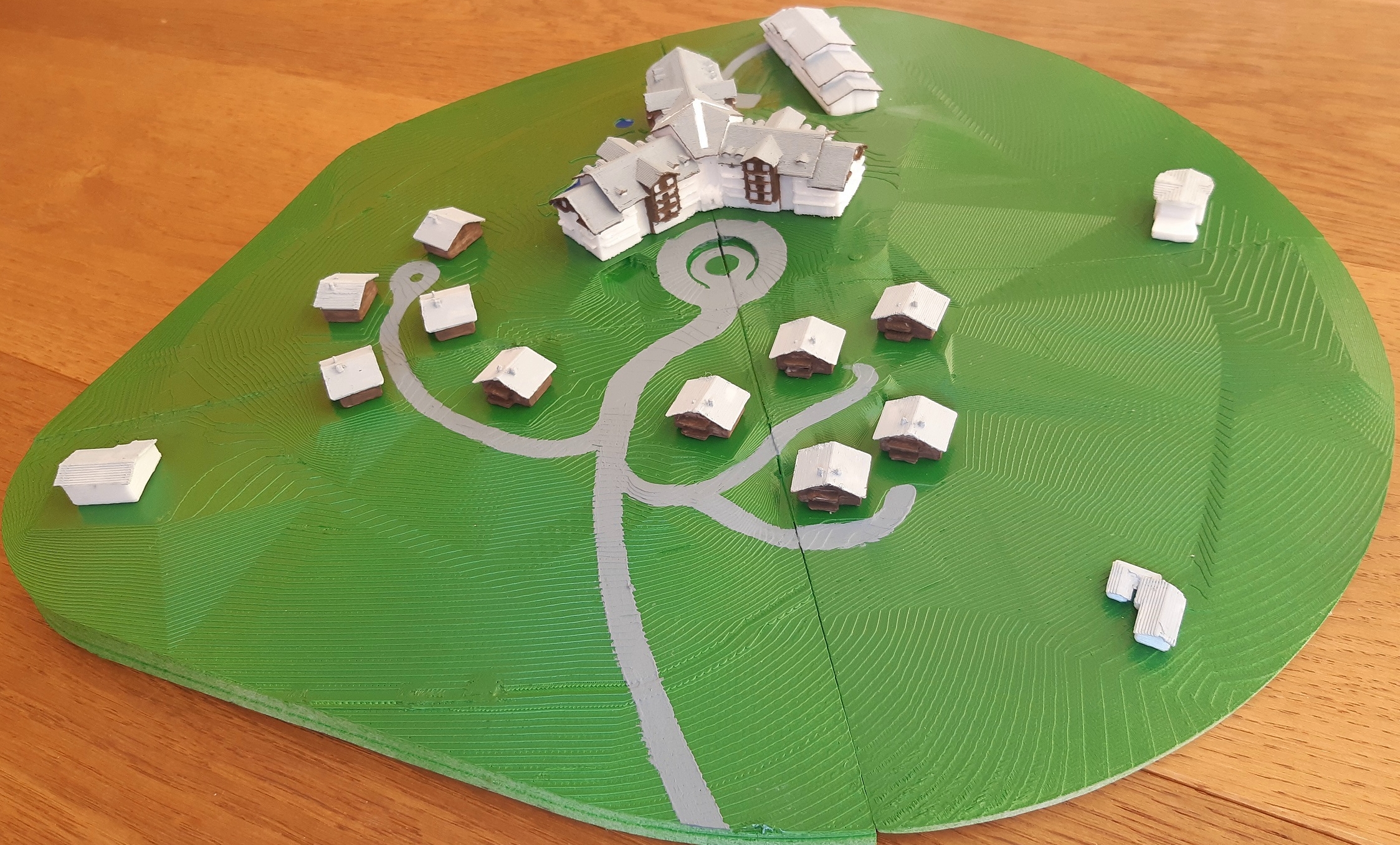

Why do we do this? Virtuality does not always help. It's also good to have something in your hand for once. We model complex structures virtually in 3D, and then we print them out to scale in one or more colours in 3D. This allows us to literally better grasp our design.


Watch YouTube video

Writing software

We write software for our internal applications in noise control planning using MS VBA Excel.

Why do we do this? Long linear structures require the utmost attention during design. Repetitive work can be completed faster and without errors with the appropriate software. We use our in-house developed software for noise protection wall design.


Further information


360° photography

×

With the app from HoloBuilder, Inc. we can easily locate the positions of the panoramic shots on the floor plans:

3D print

×

The comparatively low acquisition costs as well as the simple design and available modifications make the Prusa i3 attractive for professional use as well.

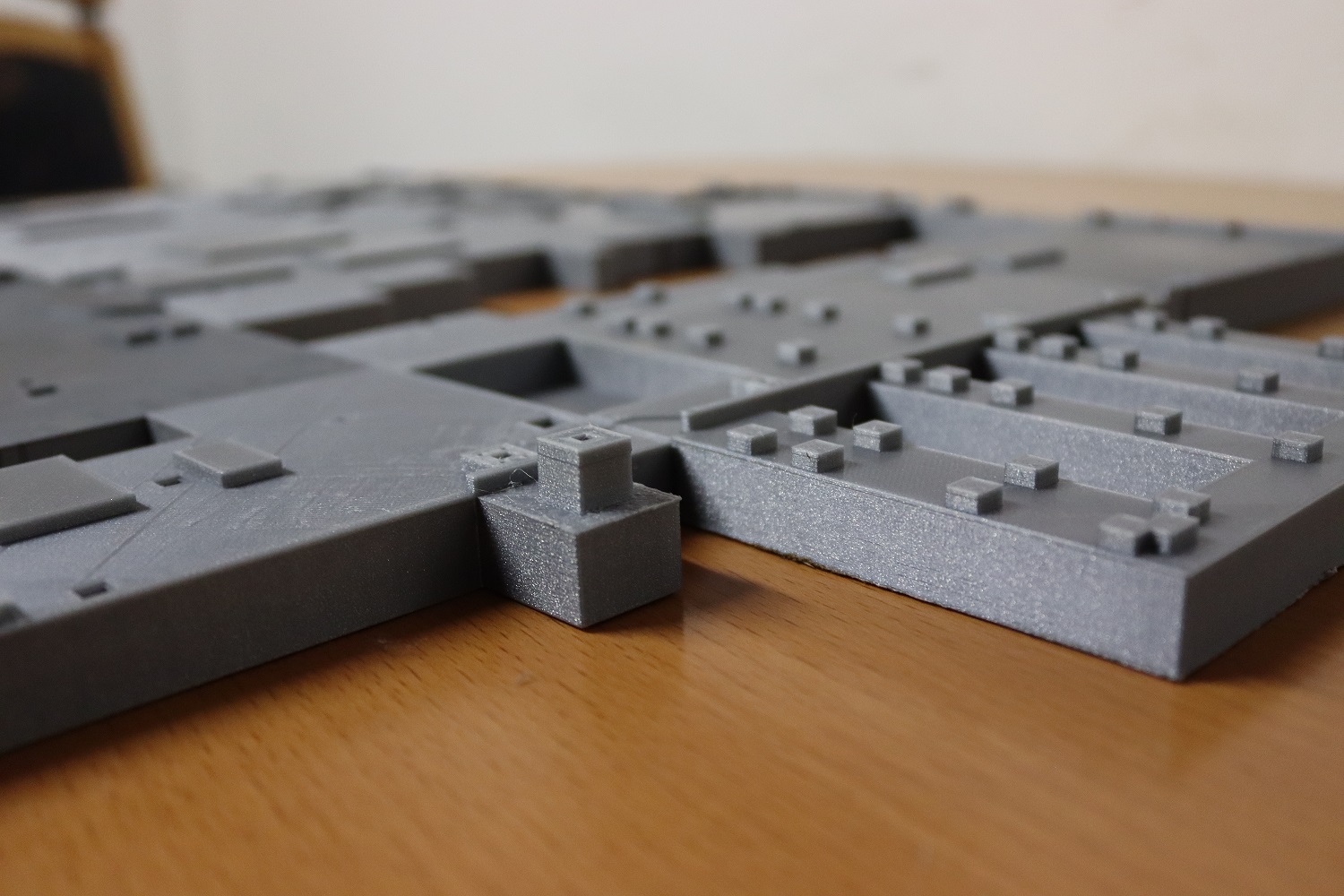

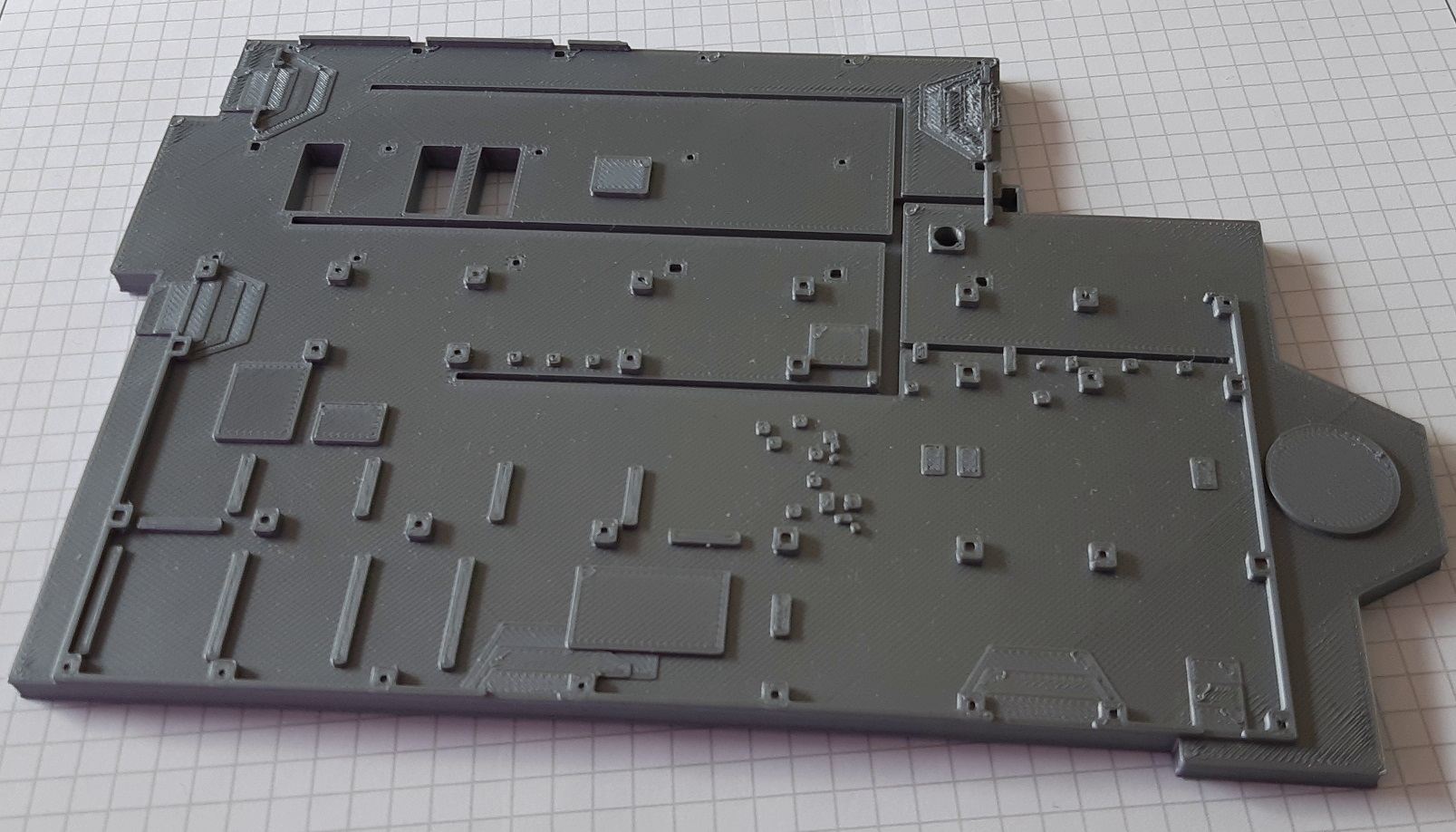

The reinforced concrete floor slab of the machine hall of the combined cycle power plant in Marl/Germany, printed directly from the 3D model for the formwork and reinforcement design:

Augmented reality

×

Here is the entire Microsoft Ignite Mixed Reality keynote with Alex Kipman. Kipman covers Microsoft Mesh, the HoloLens 2 and Pokemon GO multiplayer on HoloLens.

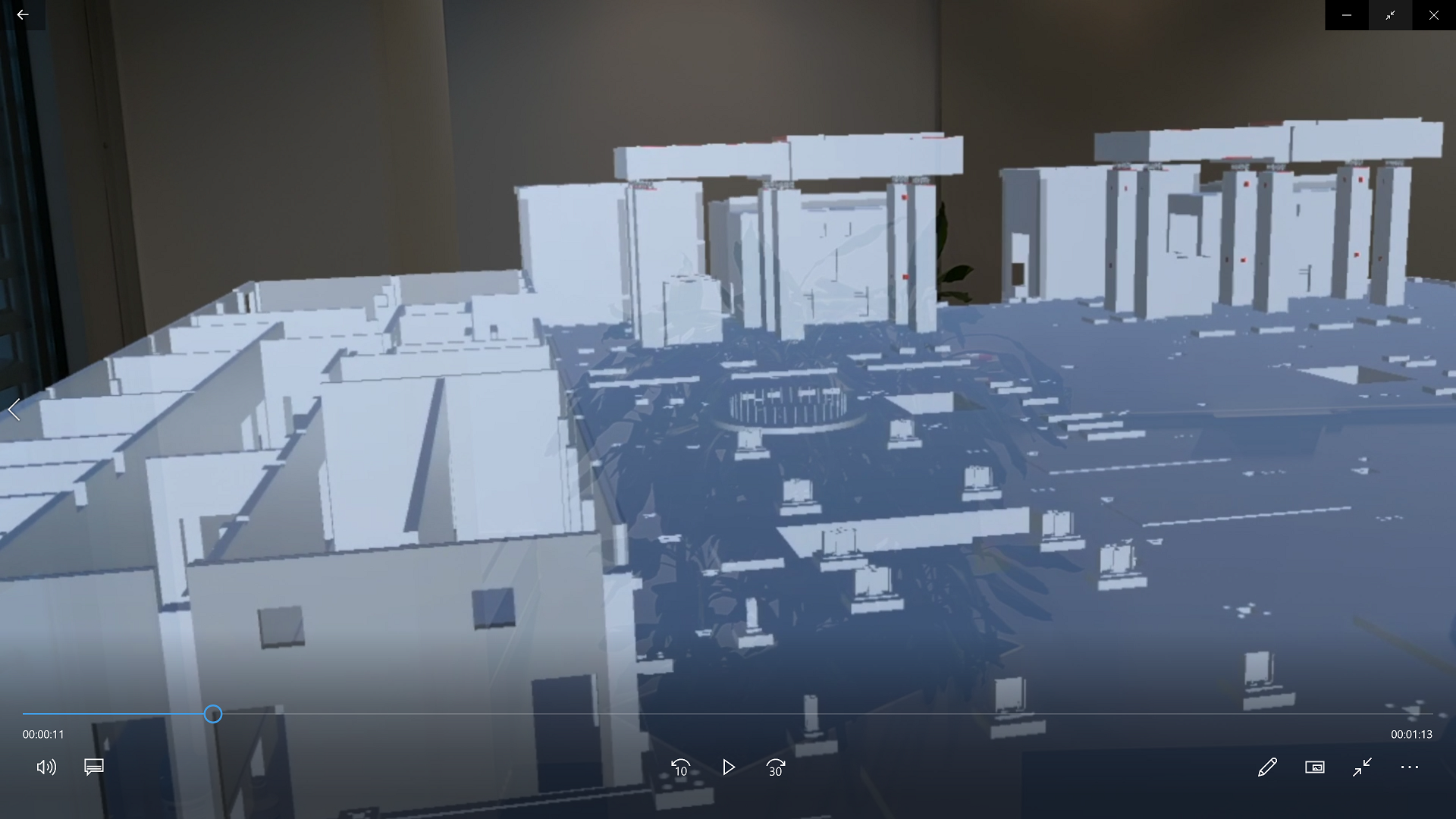

The reinforced concrete floor slab of the main building of the combined cycle power plant in Wolfsburg/Germany, rendered directly from the 3D model of the formwork and reinforcement design, and viewed through the HoloLens 2 AR glasses:

Aerial photography

×

DJI's gimbal technology enables blur-free movies at a maximum video resolution of 4K/30fps at 100 Mbps. Pre-programmed modes allow you to record videos with set settings and movements.

Our drone is not only good for aerial photos of buildings...

Writing software

×

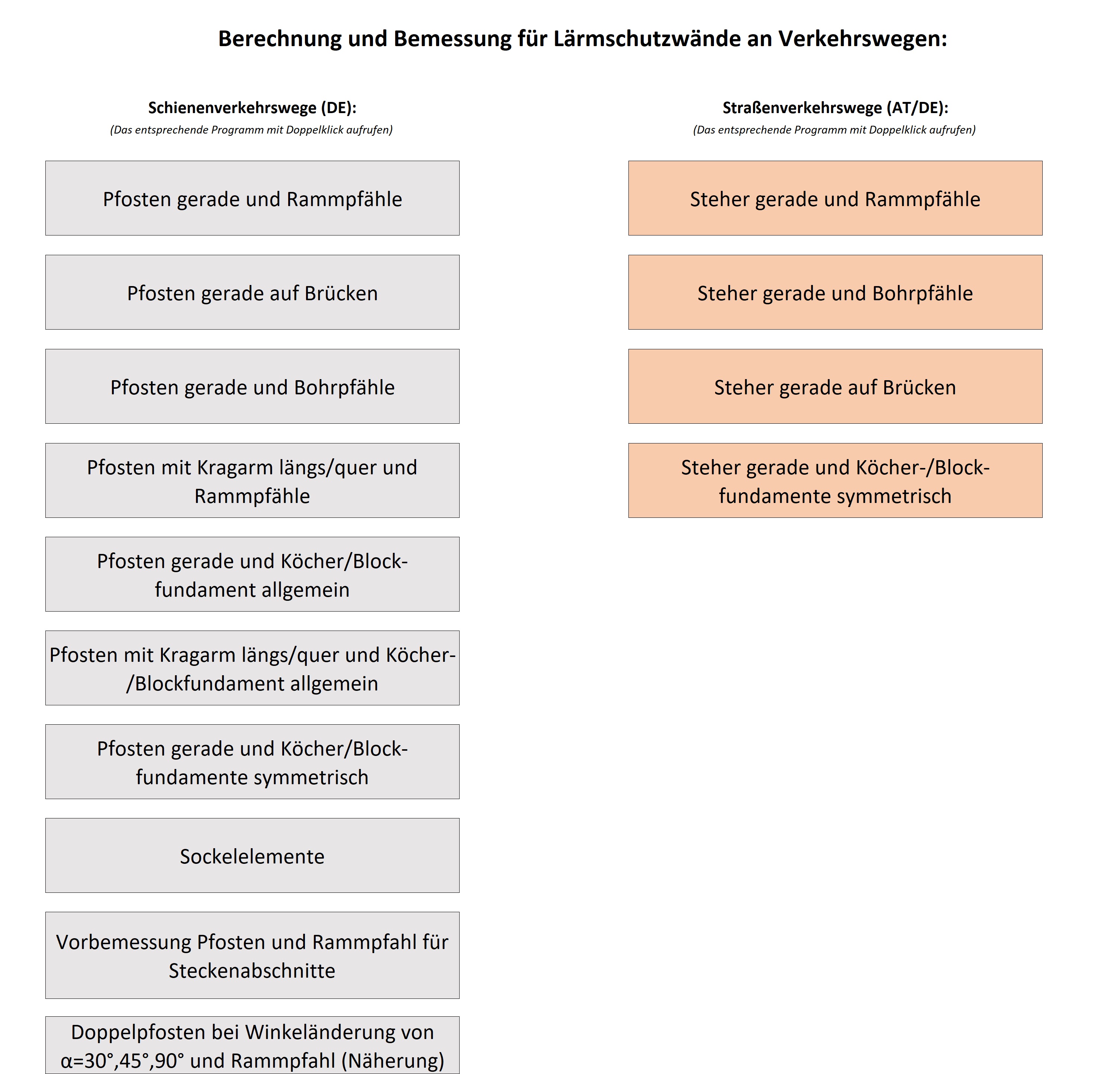

With our in-house software we can calculate the following construction elements of noise protection walls:

Virtual reality

×

A reinforcement inspection, documented with an immersive 3D capture, which can be virtually walked through by clicking on the symbol with VR glasses.

A highlight reel through our office. The immersive 3D capture can be virtually walked through with VR glasses by clicking on the icon.
